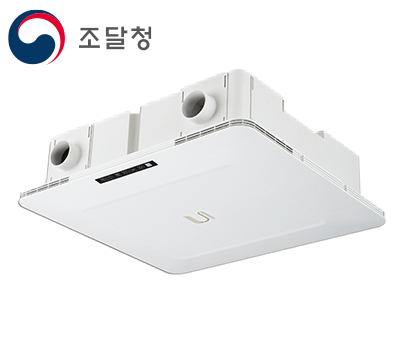

YWHRV-50C (Cassette type | ABS high efficiency | Bypass | Internal circulation)

Displayed air volume 50CMH
Power Single phase, 220V, 60Hz
Duct connection diameter Ø100 (outdoor), Ø65 (for indoor branch use)
Size 640mm x 570mm x 160mm(H)
Air Volume(CMH) Strong (60), Medium (50), Weak (30)
External static pressure 30.5Pa
Effective total heat exchange efficiency Heating 76.5% / Cooling 59.5%
COE (coefficient of energy ) Heating 19.34 / Cooling 11.58
Power consumption 18.9W
Weight(Kg) 7
Filter Prefilter, medium filter (or HEPA filter)
Noise 36.6


High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings

Sensorless BLDC Motor

Minimized noise and vibration / Low power (50% reduction compared to AC)

Compact size / Slim design

Clean design and color / Applicable to various fields

Pre-filter, medium filter (or HEPA filter) applied

Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible / UV LED (optional)
