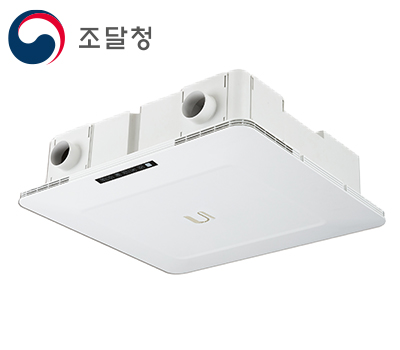

YWHRV-100C (Cassette type | ABS high efficiency | Bypass | Internal circulation)

Displayed air volume 100CMH
Power Single phase, 220V, 60Hz
Duct connection diameter Ø100 (outdoor), Ø65 (for indoor branch use)

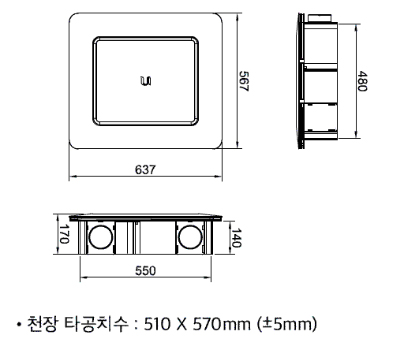

Size 640mm x 570mm x 160mm(H)
Air Volume(CMH) Strong (110), Medium (100), Weak (70)
External static pressure 30Pa
Effective total heat exchange efficiency Heating 75% / Cooling 57%
COE (coefficient of energy ) Heating 15.44 / Cooling 9.51
Power consumption 43.0W
Weight(Kg) 7
Filter Prefilter, medium filter (or HEPA filter)
Noise 39.8



High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings

Sensorless BLDC Motor

Minimized noise and vibration / Low power (50% reduction compared to AC)

Compact size / Slim design

Clean design and color / Applicable to various fields

Pre-filter, medium filter (or HEPA filter) applied

Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible / UV LED (optional)
