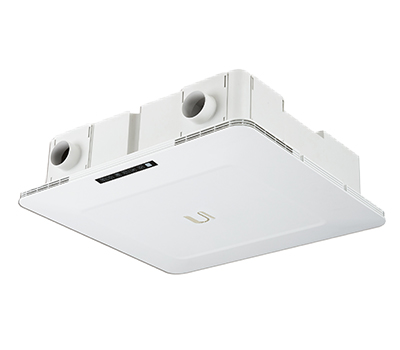

YWHRV-50CS (Cassette type | Bypass)
| Displayed air volume | 50CMH |
|---|---|
| Power | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø100 (outdoor), Ø65 (for indoor branch use) |
| Size | 490mm x 405mm x 143mm(H) |
| Air Volume(CMH) | Strong (60), Medium (50), Weak (40) |
| External static pressure | 30.5Pa |
| Effective total heat exchange efficiency | Heating 76.8% / Cooling 66.4% |
| COE (coefficient of energy ) | Heating 20.06 / Cooling 13.56 |
| Power consumption | 18.9W |
| Weight(Kg) | 7 |
| Filter | Prefilter, medium filter (or HEPA filter) |
| Noise | 35.6 |
Sensorless BLDC Motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact size / Slim design
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible / UV LED (optional)
