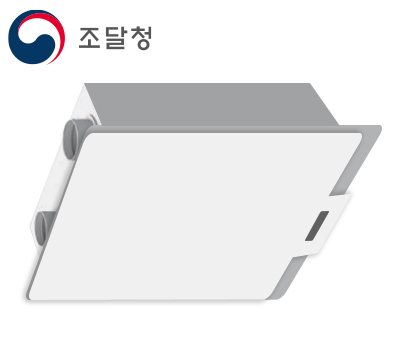

YWHRV-400C (Cassette type | ABS high efficiency I Bypass I Internal circulation)

Displayed air volume 400CMH
Power Single phase, 220V, 60Hz
Duct connection diameter Ø150 (OA, EA)
Size 800mm X 800mm X 350mm(H)
Air Volume(CMH) Strong (400), Medium (300), Weak (150)
External static pressure 52.2Pa
Effective total heat exchange efficiency Heating 72.1% / Cooling 56.4%
COE (coefficient of energy ) Heating 15.24 / Cooling 9.41
Power consumption 169.4W
Weight(Kg) 35
Filter Prefilter, medium filter (or HEPA filter)
Noise 49.8



Strong/Medium/Weak 3-stage control
Timer setting possible
Sleep mode setting possible
Use of low-power sensorless motor
Heating mode, bypass mode, internal circulation mode
Indoor air quality sensor (PM2.5/CO2 sensor) linkage - automatic operation mode
Ceiling hole size: 928 X 926mm (±5mm)
