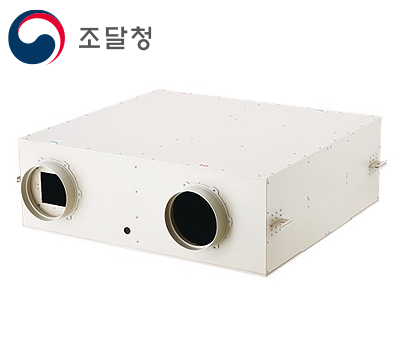

YWHRV-1500 (High Efficiency)

Displayed air volume 1500CMH
Power Single phase, 220V, 60Hz
Duct connection diameter Ø300
Size 1,200mm X 1,300mm X 520mm(H)
Air Volume(CMH) Strong (1500), Medium (800), Weak (400)
External static pressure 121.0Pa
Effective total heat exchange efficiency Heating 78.7%/ Cooling 64.4%
Coefficient of energy Heating 15.14 / Cooling 9.63
Power consumption 730.4W
Weight(Kg) 97
Filter Prefilter, medium filter (or HEPA filter)


Strong/Medium/Weak 3-stage control
Timer setting possible
Sleep mode setting possible
Low-power BLDC motor used
