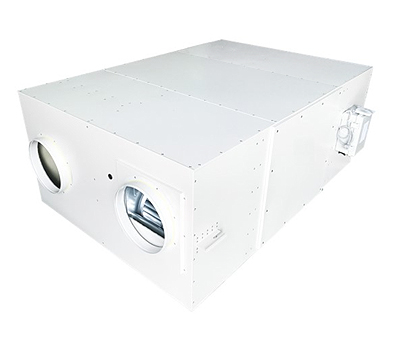

YWHRV -3000 / 4000 / 5000
| Displayed air volume | 3000 / 4000 / 5000CMH |
|---|---|
| Power | Ø3, 380V, 60Hz +Ø1, 220V, 60Hz |
| Duct connection diameter | Ø350 (Ø400 and above are custom made) |
| Size | 2,000mm x 1,400mm x 800mm(H) |
| Air Volume(CMH) | Strong (1100), Medium (1000), Weak (700) |
| External static pressure | 20mmAq |
| Effective total heat exchange efficiency | Heating -% / Cooling -% |
| Coefficient of energy | Heating - / Cooling - |
| Power consumption | 2500W |
| Weight(Kg) | 240 |
| Filter | Prefilter, medium filter (or HEPA filter) |
High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact size / Slim design
Clean design and color / Applicable to various fields
Pre-filter applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
