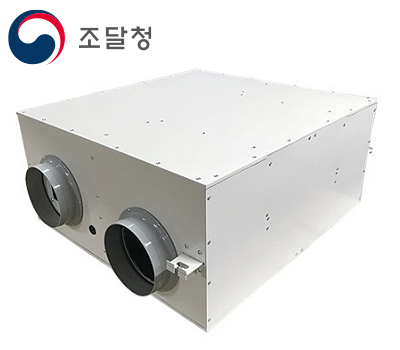

YWHRV-500 (High Efficiency)

Displayed wind volume 500CMH
Rated voltage Single phase, 220V, 60Hz
Duct connection diameter Ø200
Size 810mm x 850mm x 400mm(H)
Air Volume(CMH) Strong (550), Medium (500), Weak (350)
External static pressure 100.2Pa
Effective heat exchange efficiency Heating 76.4% / Cooling 62.6%
Energy coefficient Heating 19.27 / Cooling 12.41
Power consumption 177.7W
Weight(Kg) 40




High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact / slim product size
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
