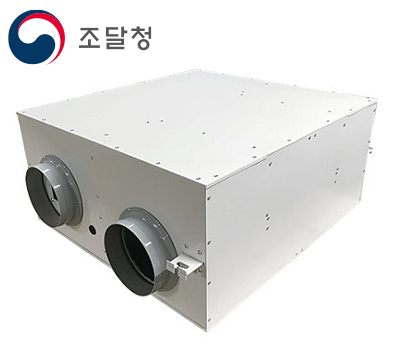

YWHRV-500BP (High Efficiency | Bypass)

Displayed wind volume 500CMH
Rated voltage Single phase, 220V, 60Hz
Duct connection diameter Ø200
Size 810mm x 850mm x 450mm(H)
Air Volume(CMH) Strong (550), Medium (500), Weak (350)
External static pressure 10mmAq
Effective heat exchange efficiency Heating 73% / Cooling 63%
Energy coefficient Heating 19.82/ Cooling 13.72
Power consumption 170W
Weight(Kg) 47




High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact / slim product size
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
