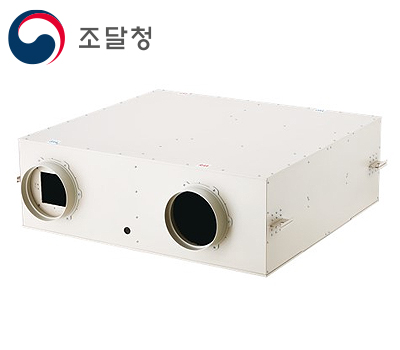

YWHRV-800 (High Efficiency)
| Displayed wind volume | 800CMH |
|---|---|
| Rated voltage | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø250 |
| Size | 1,200mm x 1,100mm x 400mm(H) |
| Air Volume(CMH) | Strong (850), Medium (800), Weak (560) |
| External static pressure | 100.3Pa |
| Effective heat exchange efficiency | Heating 75.8% / Cooling 68.0% |
| Energy coefficient | Heating 20.21 / Cooling 14.53 |
| Power consumption | 270.2W |
| Weight(Kg) | 63 |
High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact / slim product size
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
