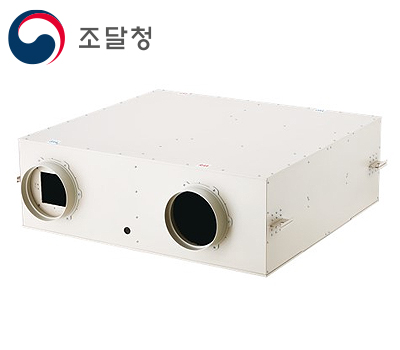

YWHRV-800BP (High Efficiency | Bypass)

Displayed wind volume 800CMH
Rated voltage Single phase, 220V, 60Hz
Duct connection diameter Ø250
Size 1,200mm x 1,100mm x 450mm(H)
Air Volume(CMH) Strong (850), Medium (800), Weak (560)
External static pressure 100.0Pa
Effective heat exchange efficiency Heating 72.0% / Cooling 550.%
Energy coefficient Heating 18.34 / Cooling 11.90
Power consumption 297W
Weight(Kg) 76




High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact / slim product size
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
