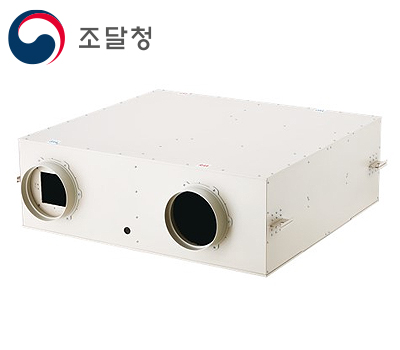

YWHRV-1000BP (High Efficiency | Bypass)

Displayed wind volume 1000CMH
Rated voltage Single phase, 220V, 60Hz
Duct connection diameter 250
Size 1,100mm x 1,200mm x 450mm
Air Volume(CMH) Strong (1100), Medium (1000), Weak (700)
External static pressure 15mmAq
Effective heat exchange efficiency Heating 70% / Cooling 53%
Energy coefficient Heating 15.22 / Cooling 9.55
Power consumption 425W
Weight(Kg) 76



High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings

BLDC motor

Minimized noise and vibration / Low power (50% reduction compared to AC)

Compact size / Slim design

Clean design and color / Applicable to various fields

Pre-filter, medium filter (or HEPA filter) applied

Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
