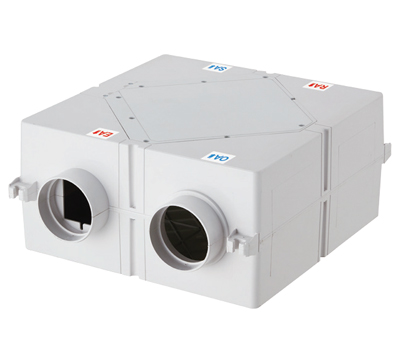

YWHRV-100BPM (High Efficiency | Bypass)
| Displayed air volume | 100CMH |
|---|---|
| Rated voltage | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø125 |
| Product size | 500mm X 500mm X 250mm(H) |
| Wind speed (CMH) | Strong (100), Medium (80), Weak (60) |
| External static pressure | 70.7Pa |
| Effective heat exchange efficiency | Heating 81.3% / Cooling 69.4% |
| Energy coefficient | Heating 23.68 / Cooling 15.82 |
| Power consumption | 31.0W |
| Weight (Kg) | 8 |
| Filter | Prefilter, medium filter (or HEPA filter) |
| Noise | 30.2 |
Strong/Medium/Weak 3-stage control
Timer setting possible
Sleep mode setting possible
Use of low-power BLDC motor
