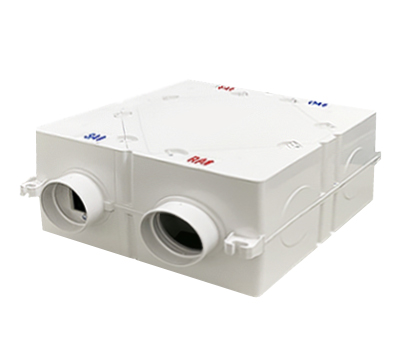

YWHRV-150BPM-C (ABS High Efficiency Compact I Bypass I Internal Circulation)
| Displayed air volume | 150CMH |
|---|---|
| Rated voltage | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø125 |
| Product size | 500mm X 500mm X 270mm(H) |
| Wind speed (CMH) | Strong (150), Medium (100), Weak (80) |
| External static pressure | 71.8Pa |
| Effective heat exchange efficiency | Heating 70.2% / Cooling 60.2% |
| Energy coefficient | Heating 20.30 / Cooling 14.48 |
| Power consumption | 45.1W |
| Weight (Kg) | 9.5 |
| Filter | Prefilter, medium filter (or HEPA filter) |
| Noise | 33.0 |
Strong/Medium/Weak 3-stage control
Timer setting possible
Sleep mode setting possible
Use of low-power sensorless motor
Internal circulation (50mm HEPA filter used)
