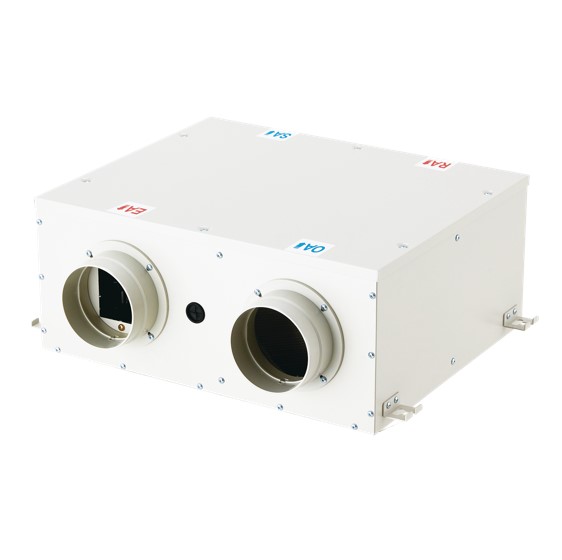

YWHRV-100SBP ( High Efficiency | Bypass)
| Displayed air volume | 100CMH |
|---|---|
| Rated voltage | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø100 |
| Product size | 494mm X 433mm X 200mm(H) |
| Wind speed (CMH) | Strong (100), Medium (80), Weak (60) |
| External static pressure | 70mmAq |
| Effective heat exchange efficiency | Heating 71% / Cooling 60% |
| Energy coefficient | Heating 15.8 / Cooling 9.0 |
| Power consumption | 45W or less |
| Weight (Kg) | 10 |
| Filter | Prefilter, medium filter (or HEPA filter) |
Strong/Medium/Weak 3-stage control
Timer setting possible
Sleep mode setting possible
Use of low-power BLDC motor
