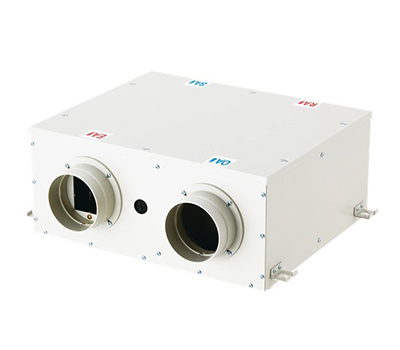

YWHRV-150BP (High Efficiency | Bypass)
| Displayed air volume | 150CMH |
|---|---|
| Rated voltage | Single phase, 220V, 60Hz |
| Duct connection diameter | Ø125 |
| Product size | 480mm x 600mm x 275mm(H) |
| Wind speed (CMH) | Strong (160), Medium (150), Weak (100) |
| External static pressure | 10mmAq |
| Effective heat exchange efficiency | Heating 72% / Cooling 64% |
| Energy coefficient | Heating 15.83 / Cooling 11.18 |
| Power consumption | 65W |
| Weight (Kg) | 15 |
| Filter | Prefilter, medium filter (or HEPA filter) |
High-efficiency energy product / Excellent heat exchange efficiency compared to other products / Energy cost savings
BLDC motor
Minimized noise and vibration / Low power (50% reduction compared to AC)
Compact size / Slim design
Clean design and color / Applicable to various fields
Pre-filter, medium filter (or HEPA filter) applied
Strong, medium, weak 3-stage control / Timer setting possible / Sleep mode setting possible
